Materials

Galvanized Steel

All of our materials used are 100% galvanized
  • 14 gauge (.o75 inches) have a 10 Year Limited Warranty
  • 12 gauge (.105 inches) have a 20 Year Limited Warranty
  • Baserail

    The baserail is the foundation of the building, each welded sleeve is approximately 4ft apart center to center. Longest single baserail that we manufacture is 25 feet long.

    Trusses/Bows

    Vary from sizes of 12 feet wide up to 60 feet wide.

    Sheet Panels

    They are 29 gauge in thickness. Our longest single panel is 31' long.

    Walk-in Doors

    34" width and 72" height

    Windows

    30" width x 30" height

    Standard Anchors

    All buildings anchored to ground come with pin anchors unless building is being anchored down on concrete.

    Additional Anchoring

    These are used for additional anchoring when needed.

    Braces

    These 18 gauge braces are used for center bracing and corner bracing.

    Purlins / Hat Channels

    Frame piece on A-frame Vertical roof that runs horizontal so sheet panels can be attached.

    Vapor Barrier

    Used to reduce condensation on roof.

    Roll-up Door

    We offer sizes starting at 6' x 7' up to 14' x 14'.

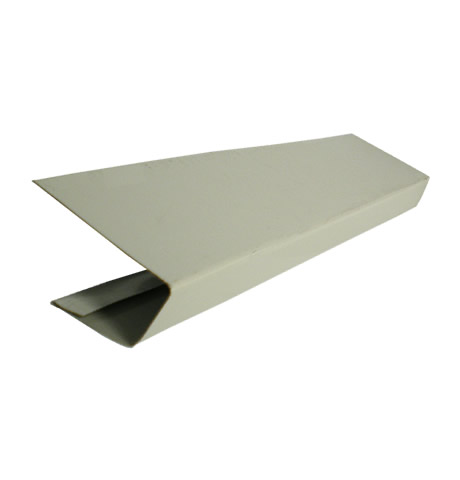

    J Trim

    Used to trim out windows and walk-in doors.

    L Trim

    Used to trim out roll-up doors and edges of sheet panels for horizontal roofs/sides.

    Ridgecap Trim

    Used for the peak of an A-frame Vertical where sheet panels meet.

    Boxed Eve

    Used to cover truss overhang on A-frame styles where roof and side panels meet.
